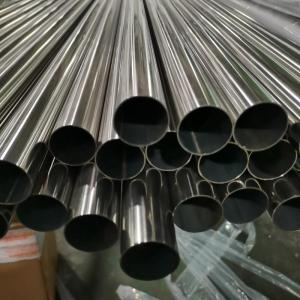

S32760 Duplex Stainless Steel Pipes ASTM A790 / ASTM 928 / ASTM A999

Brand Name : Shangle

Model Number : 12.7

Certification : PED,IS09001

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500TONS/30DAYS

Delivery Time : 30DAYS

Packaging Details : Woven Packing

Material : s31803/s32205/309S/2520/314/317/347/904/254

Standard : AISI, ASTM, DIN, EN, GB

Shape : SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80

Technique : Cold Draw

Application : Oil, Petroleum/Power

Package : Woven Packing

Contact Now

S32760 Duplex Stainless Steel Pipes ASTM A790 / ASTM 928 / ASTM A999

Specifications of ALLOY S32760

  • Alloy 32760 to MLA-MPS-48V-BAR/FORG
  • EN 10088-3 1.4501
  • ASTM A473 UNS S32760 Forgings
  • ASTM A182 Grade F55 UNS S32760 Forged Flanges
  • ASTM A240 UNS S32760 Sheet and Plate
  • ASTM A479 UNS S32760 Bar
  • ASTM A276 UNS S32760 Condition A
  • NACE MR 01-75

Applications of ALLOY S32760
Chemical Process Industry:
Nitric Acid Processes, Polypropylene Production, PVC Production, Dioxide, Caustic Evaporators, Equipment
Handling Organic and Fatty Acids
Marine Industry and Shipbuilding:
Propellers and Shafts, Rudders, Shaft Seals, Pumps, Bolts and Fasteners, Valves, Instrumentation, Oil and Chemical Tankers
Oil and Gas Industry:
Pumps, Valves, Pipe, Vessels, Wellhead Equipment, Subsea Equipment
Pollution Control:
Fans and pumps, Wet Scrubbers, Incinerators
Pulp and Paper Industry:
Black liquor heater tubes, Digester Blow Valves, Rotary Feed Valves, I.D.Fans, Brownstock Washers, Precipitators, Bleaching Components
Food Industry:
Sugar Cane Centrifuges, Corn and Vegetable processing plant
Agrochemicals:
Fertiliser Production (Wet phosphoric acid)
Civil Engineering:
Sewage Treatment

ALLOY S32760 Features
  • Excellent corrosion resistance in a wide variety of corrosive
  • Outstanding resistance to pitting and crevice corrosion in seawater and other chloride containing environments, with Critical Pitting Temperature exceeding 50°C
  • High strength compared to austenitic and 22%Cr duplex stainless steels

KEY Features of ALLOY S32760
  • High strength compared to austenitic and 22% chrome duplex stainless steels
  • Excellent corrosion resistance in a wide variety of corrosive chemicals including seawater and industrial acids
  • Excellent ductility and impact strength at both ambient and sub-zero temperatures
  • High resistance to abrasion, erosion and cavitation erosion Excellent resistance to stress corrosion cracking
  • Applicable for sour service operation
  • Specified for pressure vessel applications

Chemical Specification of ALLOY S32760
Elements C Cr Cu Fe Mo Mn N Ni P S Si W
Minimum 24.0 0.5 REMAINDER 3.0 0.20 6.00 0.50
Maximum 0.030 26.00 1.0 4.0 1.0 0.30 8.00 0.030 0.010 1.00 1.00

Basic Properties of ALLOY S32760- Mechanical Properties
0.2% Proof Stress (N/mm2 ) [ksi] minimum 550 [79.8]
Ultimate Tensile Strength (N/mm2) [ksi] minimum 750 [108.8]]
Elongation (%) minimum 25
Hardness (HBN) 270max
Reduction of Cross Section Area (%) minimum 45
Charpy V-notch Impact at ambient Temp (J) [ft.lb] 80min [59min]
Charpy V-notch Impact at -46°C (J) [ft.lb] 45av, 35min [33av, 25.8min]
Additional Testing
ASTM G48A Corrosion test at 50°C No pitting and weight loss <0.8g/m2
Ultrasonic Testing According to ASTM A388
Ferrite Content 35%-55%
Microstructure Microstructure certified free from grain boundary carbides, sigma, chi and laves phases

Alloy Common Name Related Specifications Tensile Strength Proof Stress Elongation
British European United States
Super Duplex
Alloy S32760		 Zeron 100 1.4501 UNS S32760 F55 750 [109] 550 [79.8] 25
S32760 Duplex Stainless Steel Pipes ASTM A790 / ASTM 928 / ASTM A999
